3F 4Fシリーズフットバルブ3ウェイ5ウェイ

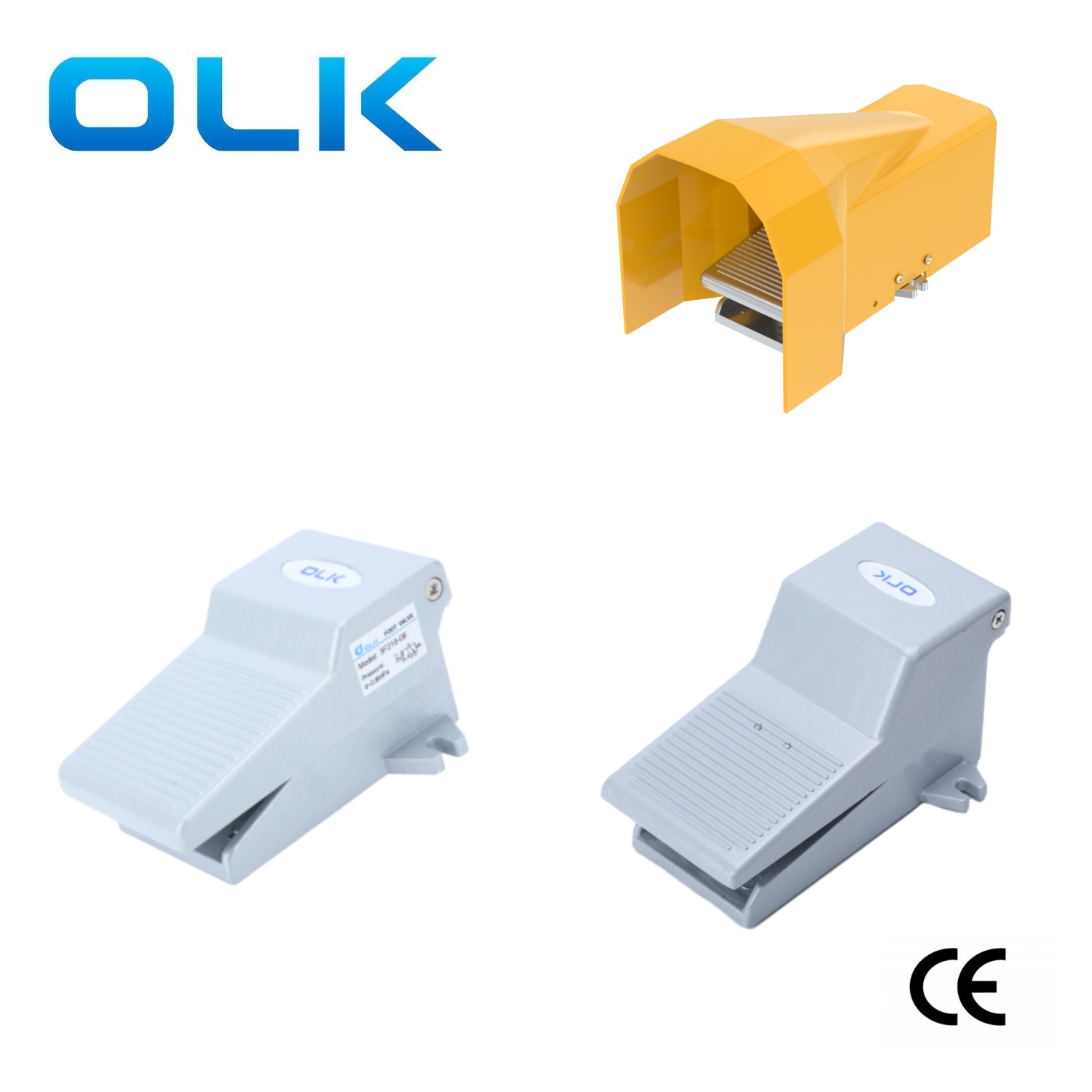

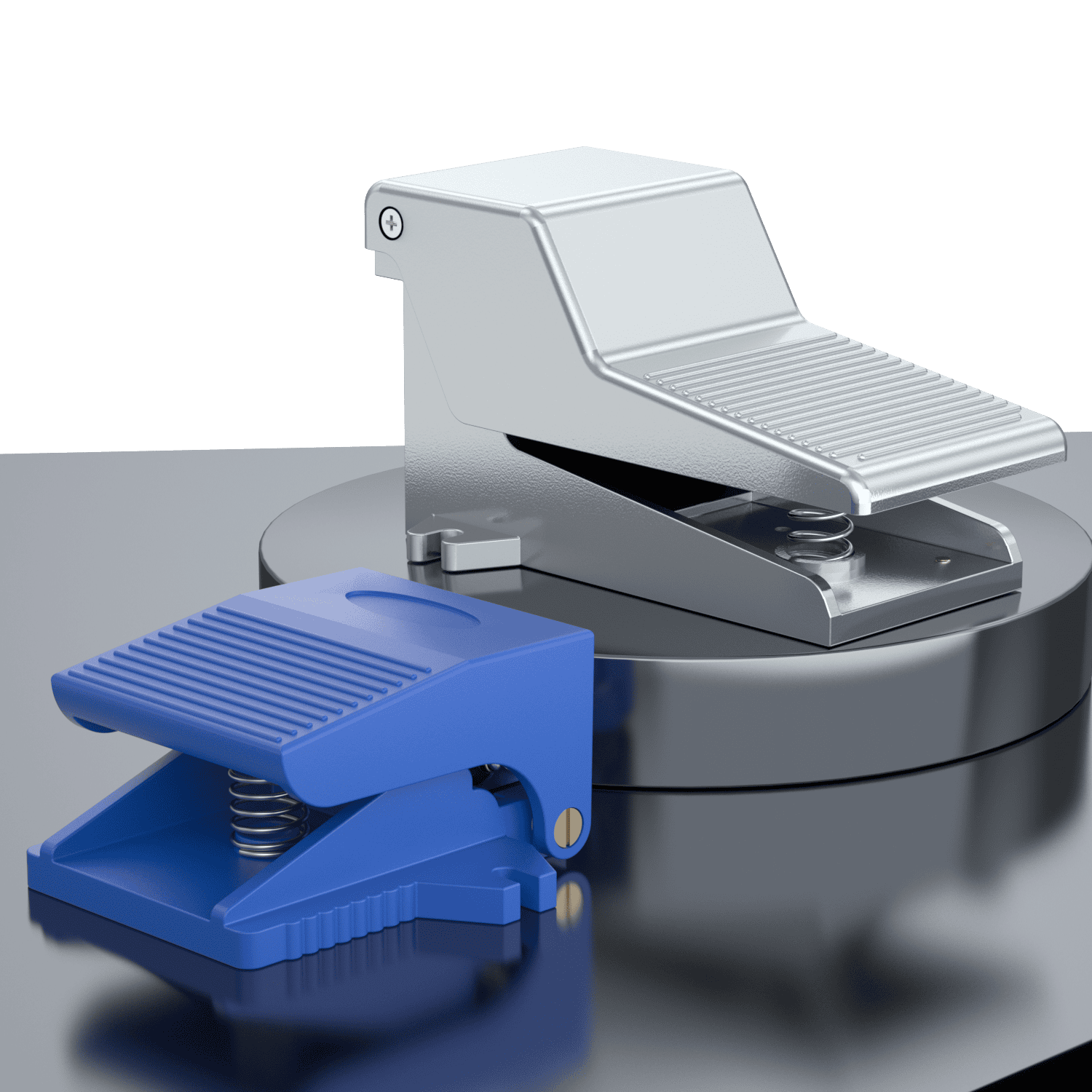

OLK pneumatic 3F 4F Series Foot Valve 3 Way 5 Way are widely used in automated production lines and machinery in industries such as food,pharmaceuticals,and chemicals.Because 3F pedal valve are direct-acting valves ,avoding the need for cumbersome hand operation and adjustments.Besides this valve have self-locking function to prevent accidental operation and ensure safety.More convenient and efficient for employees.For example, in mechanical presses, operators must step on the pneumatic foot pedal valve while using both hands to position materials, greatly improving operational safety and precision.

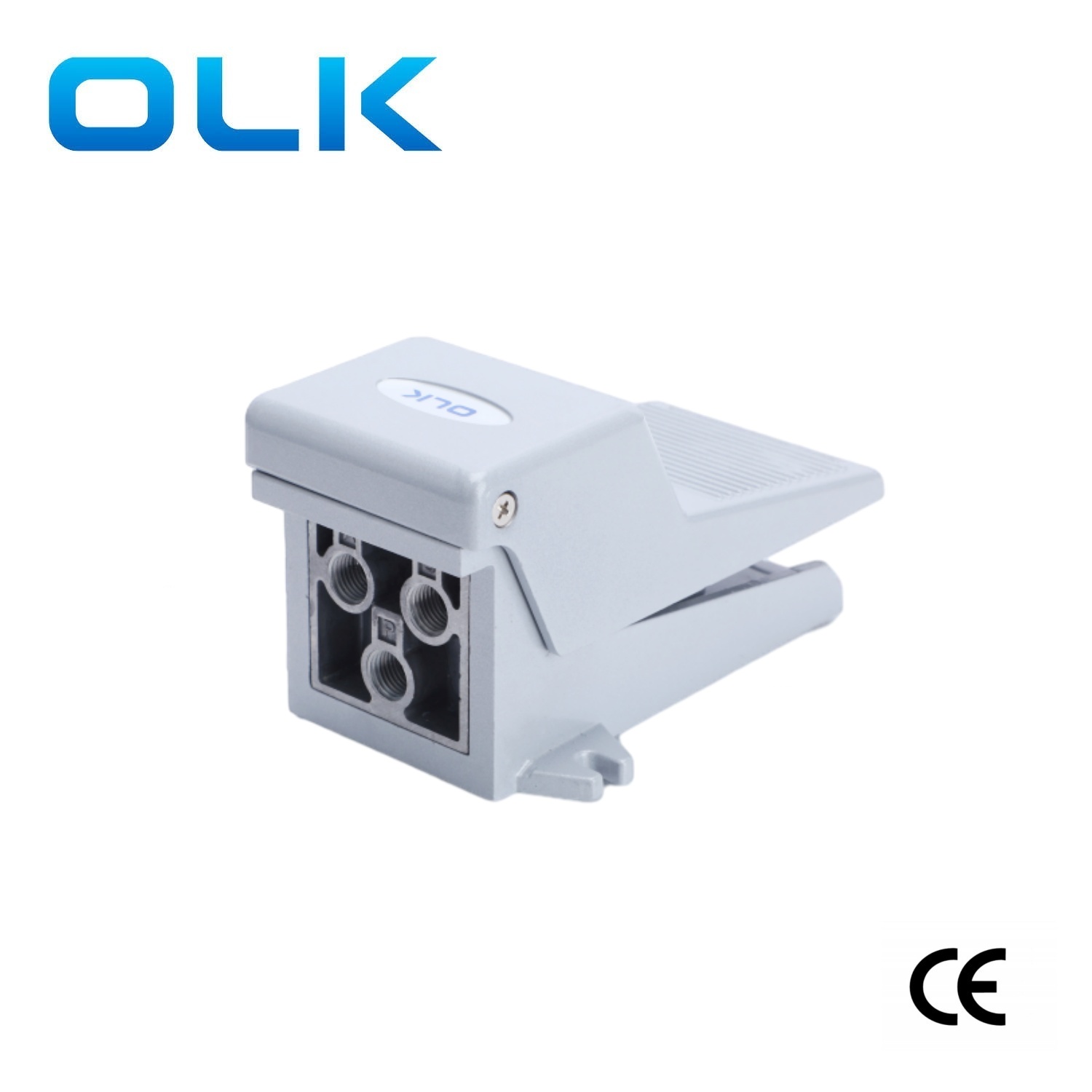

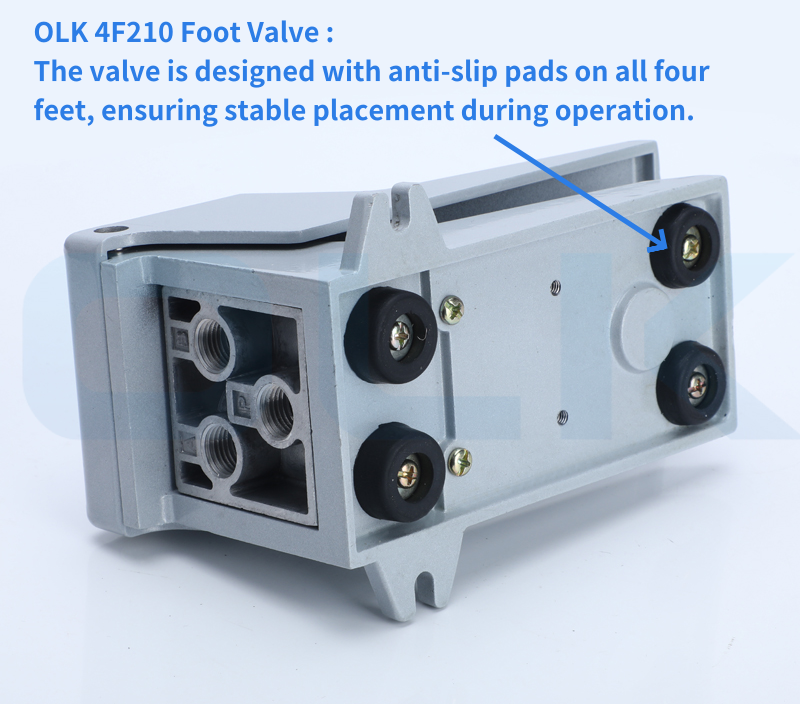

Ouleikai 4F foot pedal valves have good rebound performance, do not deform, and have fine threads without burrs. The 4F series foot pedal valve, made of aluminum alloy with five ports and two positions, is available with an optional protective cover to block debris in the work area.

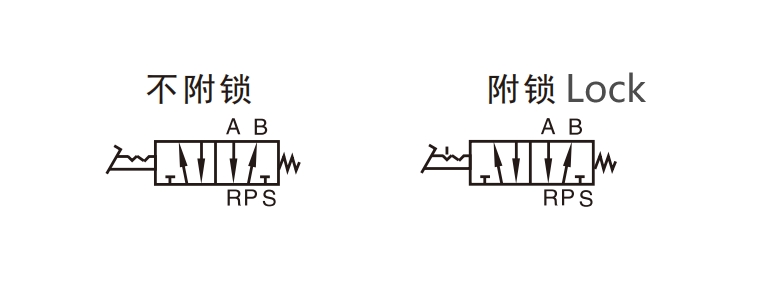

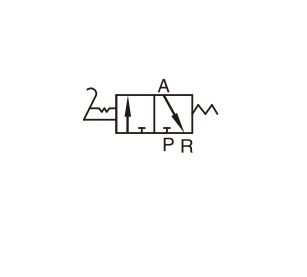

Symbol:

OLK SELF-LOCKING 3F Foot  valve 3 way ,4F Foot valve 5 way series  Product characteristics

1. Aluminum pedal, with a direct-acting design, ensuring stability and reliability.

2. If a longer holding time for switching is required, a lockable type can be selected.

3. The locking mechanism is stable and reliable, with easy and rapid unlocking. However, due to structural size limitations, it cannot withstand frequent strong impacts.

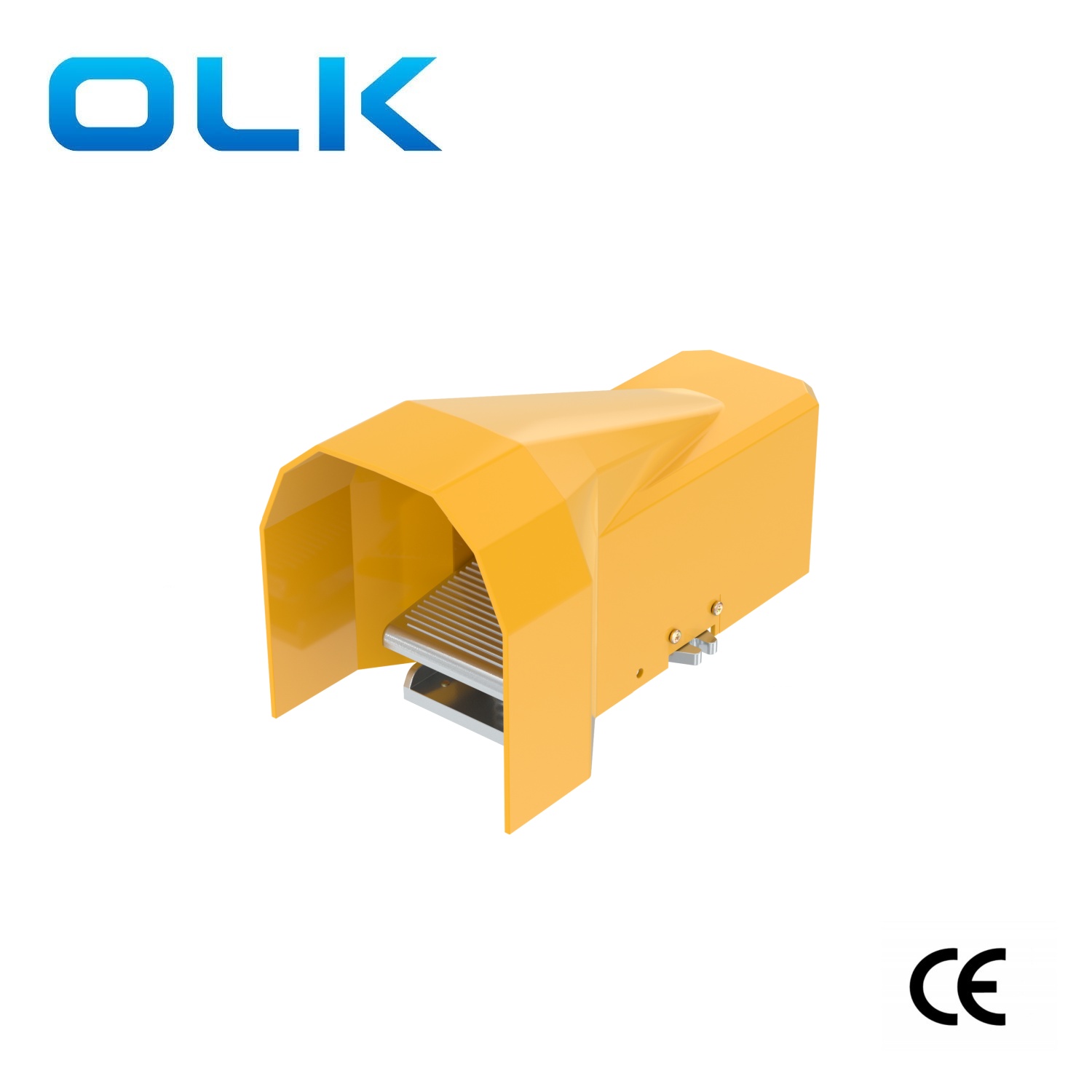

4. High-strength plastic protective covers are available as an option.

3F Foot  valve 3 way ,4F Foot valve 5 way series  General parameters

3F Foot  valve 3 way ,4F Foot valve 5 way different parameters

The locking mechanism 4F Foot valve Attention!

Note: Lubricating grease should be added regularly to ensure the normal operation of the mechanism.

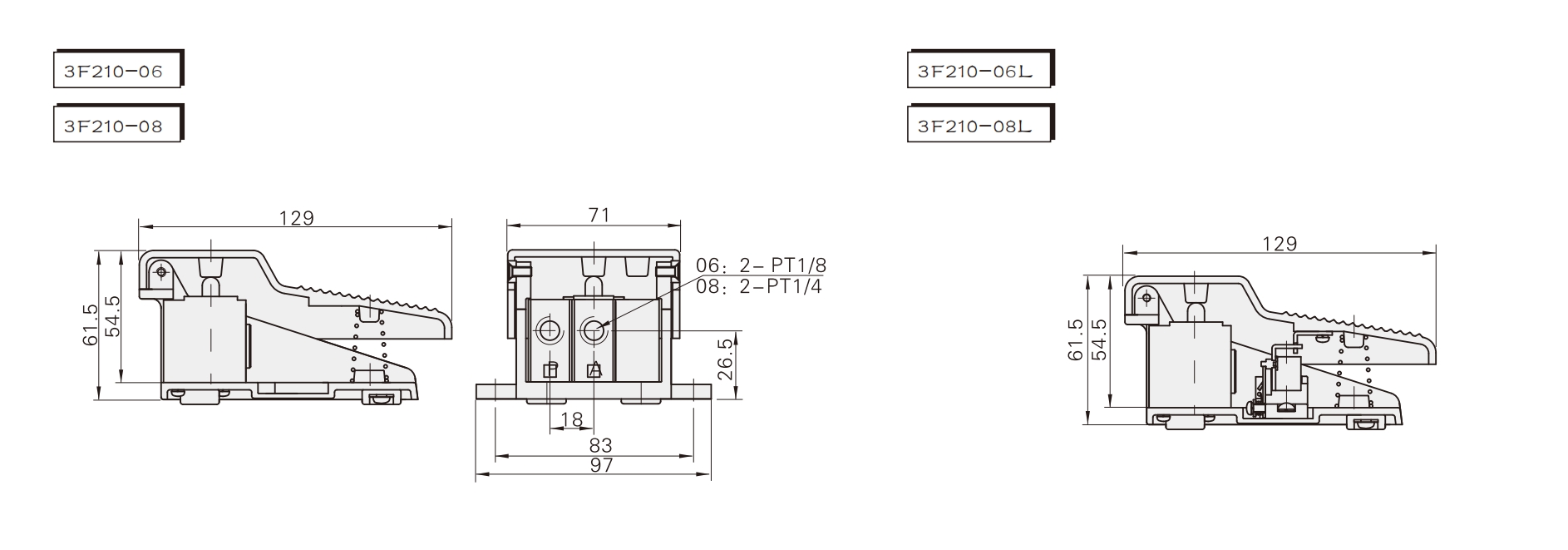

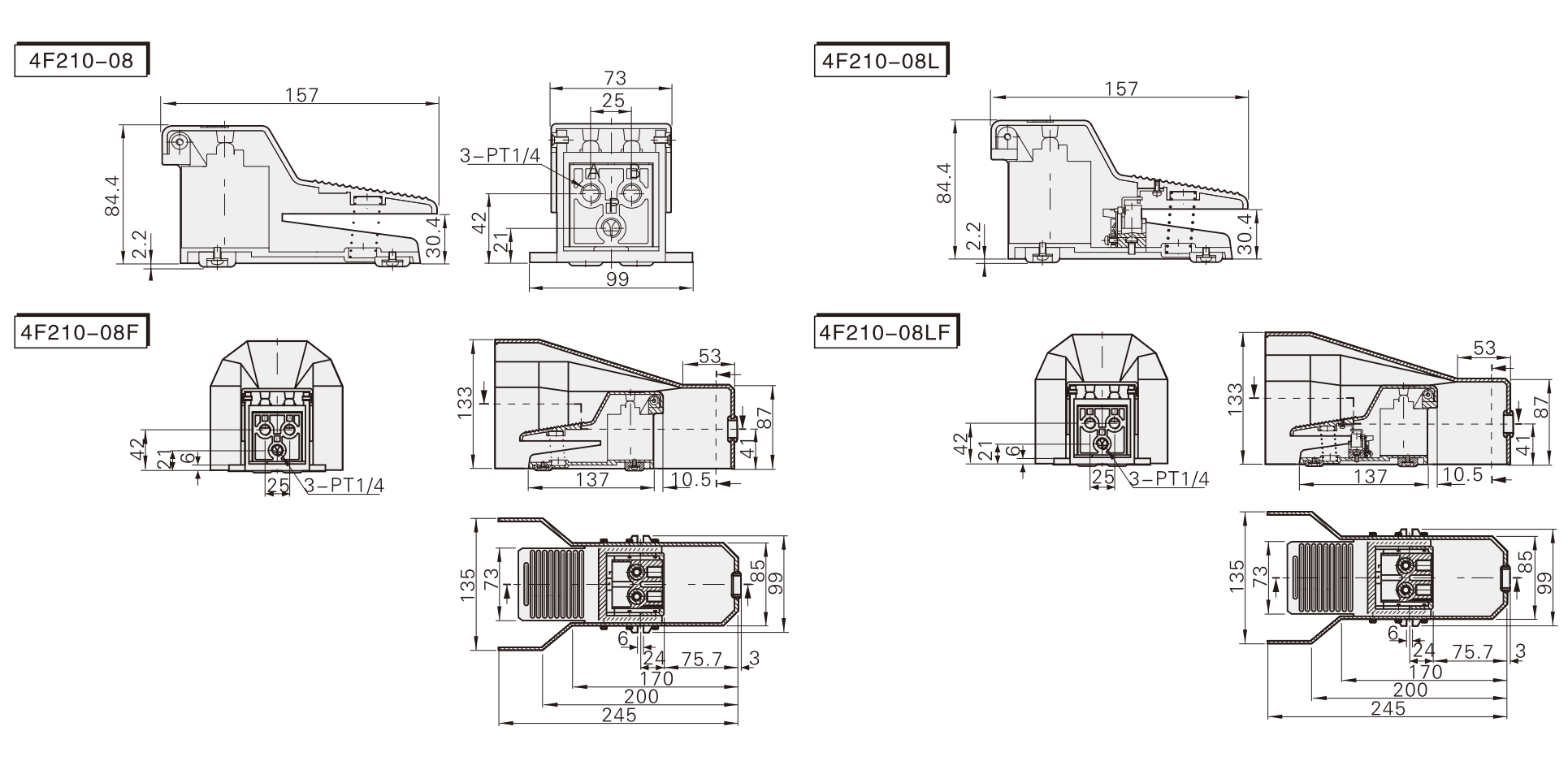

3F Foot  valve 3 way ,4F Foot valve 5 way external especifications:

FAQs:

How to distinguish the appearance of 3F,4F foot pedal valve?

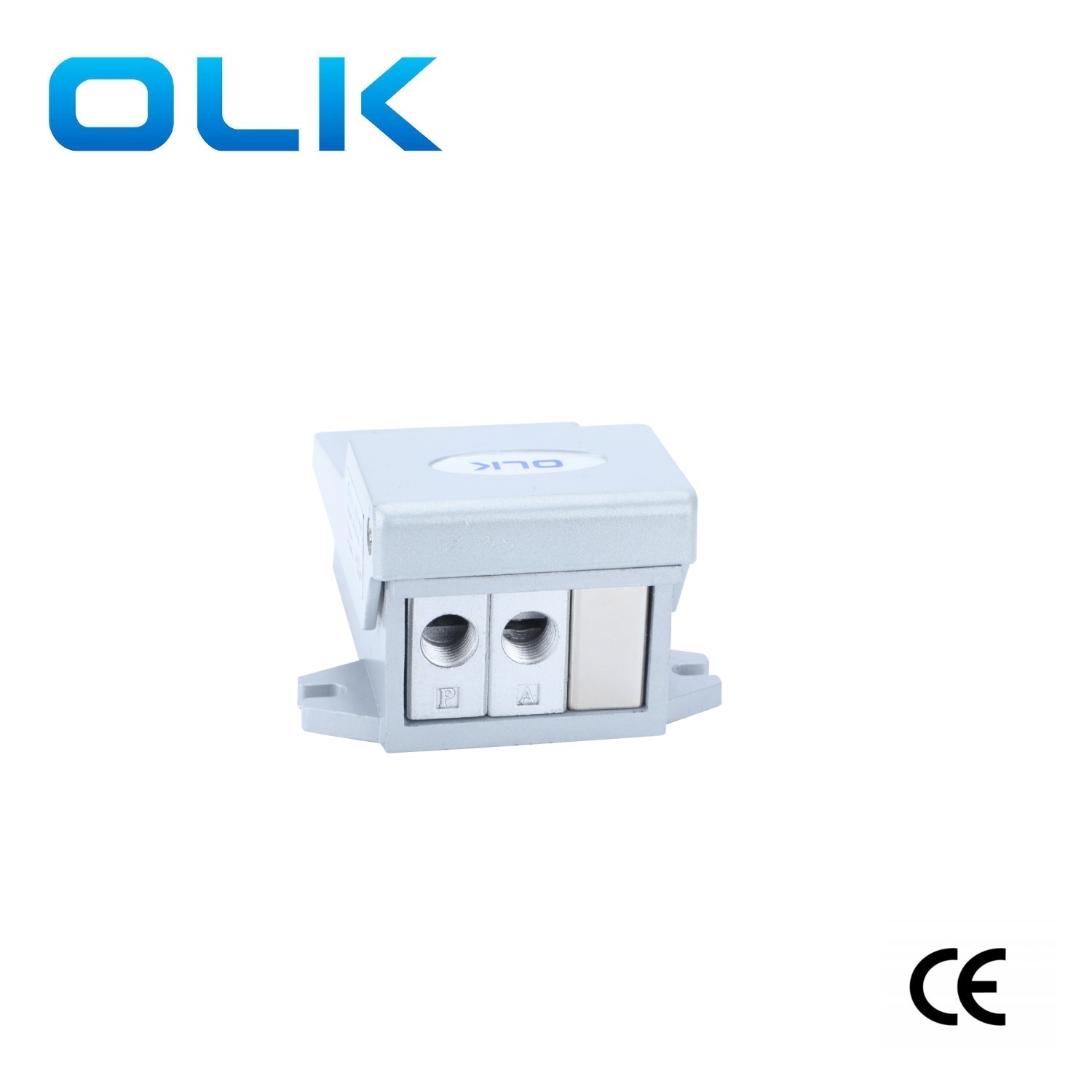

The back of the product clearly shows two holes on 3F pedal valve and three holes on 4F pedal valve.

What does 'LG' mean in OLK foot control valve?

'L' represents foot valve with lock, 'G' represents foot valve with cover. Customers can determine the model based on specific usage scenarios.
