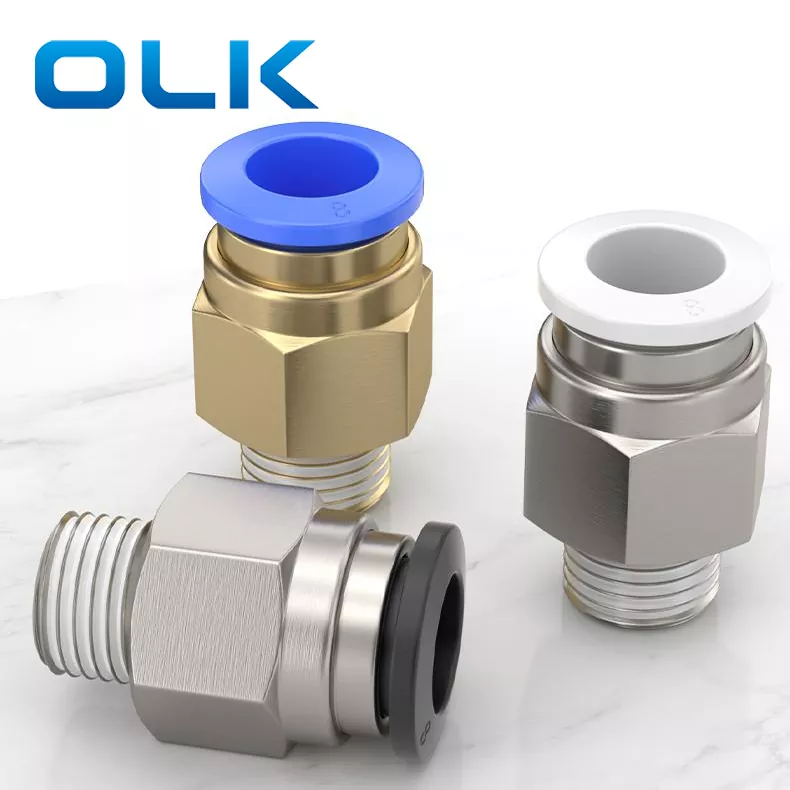

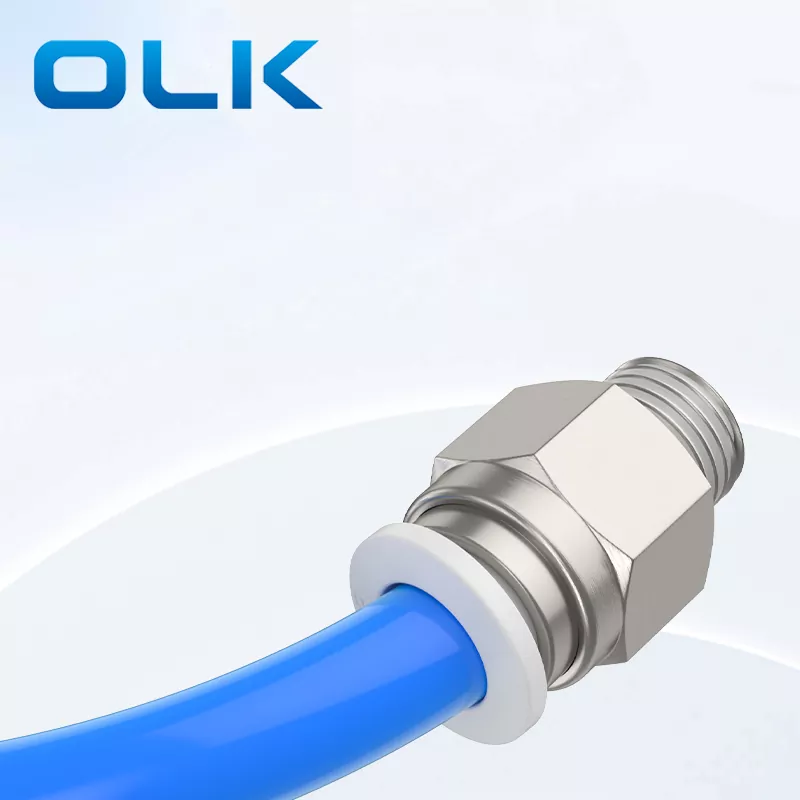

The PC male thread straight push in tube fitting is a straight-type pneumatic connector designed for quick and secure connection of tubing to equipment ports.It features compact structure, strong sealing, and fast installation.
|
Ordering code |
|||
|
PC |
8 |
-- |
01 |
|
Model |
Tube size (metric) |
|
Thread type (55°straight tube thread) |
|
|
4:4mm |
|
01:G1/8 |
|
|
6:6mm |
|
02:G1/4 |
|
|
8:8mm |
|
03:G3/8 |
|
|
10:10mm |
|
04:G1/2 |
|
|
12:12mm |
|
|
|
|
14:14mm |
|
|
|
|
16:16mm |
|
|
|
Fluid |
Air/water(conditional)/vacuum |
|
Operating pressure |
0-1.0Mpa |
|
Vacuum pressure |
-100Kpa(10 Torr) |
|
Operating temperature |
-10-60℃ |
|
Material |
NYLON(PA),Polyurethane(PU) |
|
Inch Tube Fitting |
Metric Tube Fitting |

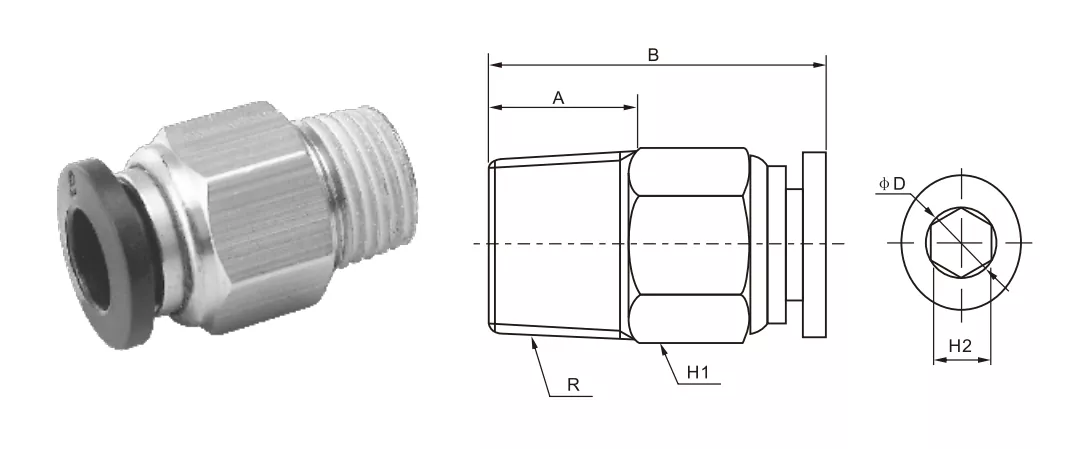

φD |
R |
A |
B |
H1 |
H2 |
|
PC5/32-M5 |
PC4-M5 |
4 |
M5 |
4.5 |
21.8 |
10 |
2 |
|
PC5/32-01 |
PC4-01 |
4 |
R1/8 |
6.5 |
20.5 |
10 |
3 |
|
PC5/32-02 |
PC4-02 |
4 |
R1/4 |
9 |
19.5 |
14 |
3 |
|
PC1/4-M5 |
PC6-M5 |
6 |
M5 |
4.5 |
22.8 |
12 |
2 |
|
PC1/4-01 |
PC6-01 |
6 |
R1/8 |
6.5 |
22.2 |
12 |
4 |
|
PC1/4-02 |
PC6-02 |
6 |
R1/4 |
9 |
22.2 |
14 |
4 |
|
PC1/4-03 |
PC6-03 |
6 |
R3/8 |
10 |
21.5 |
17 |
4 |
|
PC1/4-04 |
PC6-04 |
6 |
R1/2 |
10 |
23 |
21 |
4 |
|
PC5/16-01 |
PC8-01 |
8 |
R1/8 |
8 |
26.8 |
14 |
4 |
|
PC5/16-02 |
PC8-02 |
8 |
R1/4 |
10 |
25.2 |
14 |
6 |
|
PC5/16-03 |
PC8-03 |
8 |
R3/8 |
10 |
22.2 |
17 |
6 |
|
PC5/16-04 |
PC8-04 |
8 |
R1/2 |
11 |
23.7 |
21 |
6 |
|
PC3/8-01 |
PC10-01 |
10 |
R1/8 |
8 |
30.7 |
17 |
4 |
|
PC3/8-02 |
PC10-02 |
10 |
R1/4 |
10 |
31 |
17 |
6 |
|
PC3/8-03 |
PC10-03 |
10 |
R3/8 |
10 |
29.5 |
17 |
8 |
|
PC3/8-04 |
PC10-04 |
10 |
R1/2 |
11 |
25.2 |
21 |
8 |
|
PC1/2-01 |
PC12-01 |
12 |
R1/8 |
8 |
31.7 |
19 |
4 |
|
PC1/2-02 |
PC12-02 |
12 |
R1/4 |
10 |
33.2 |
19 |
6 |
|
PC1/2-03 |
PC12-03 |
12 |
R3/8 |
10 |
30 |
19 |
8 |
|
PC1/2-04 |
PC12-04 |
12 |
R1/2 |
11 |
30 |
21 |
8 |
|
|
PC14-03 |
14 |
R3/8 |
11 |
38 |
24 |
6 |
|
|
PC14-04 |
14 |
R1/2 |
12 |
39 |
24 |
8 |
|
|
PC16-03 |
16 |
R3/8 |
13 |
39 |
24 |
10 |
|
|
PC16-04 |
16 |
R1/2 |
15 |
39 |
27 |
12 |
What material is the PC connector made of?
copper
What are the names of the connecting tube fitting parts?

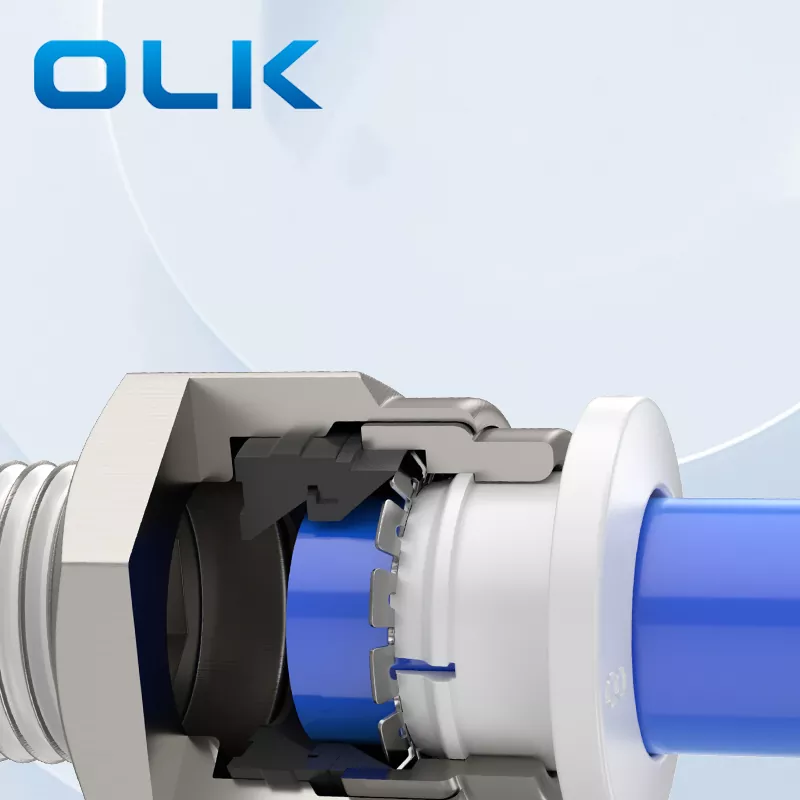

Quick connecting tube fitting internal structure:Release,zinc alloy card set,lock clip spring,lock sleeve,clasp sealing ring,high strength plastics
What type of PC thread is it?
It is a metric thread, M represents.
